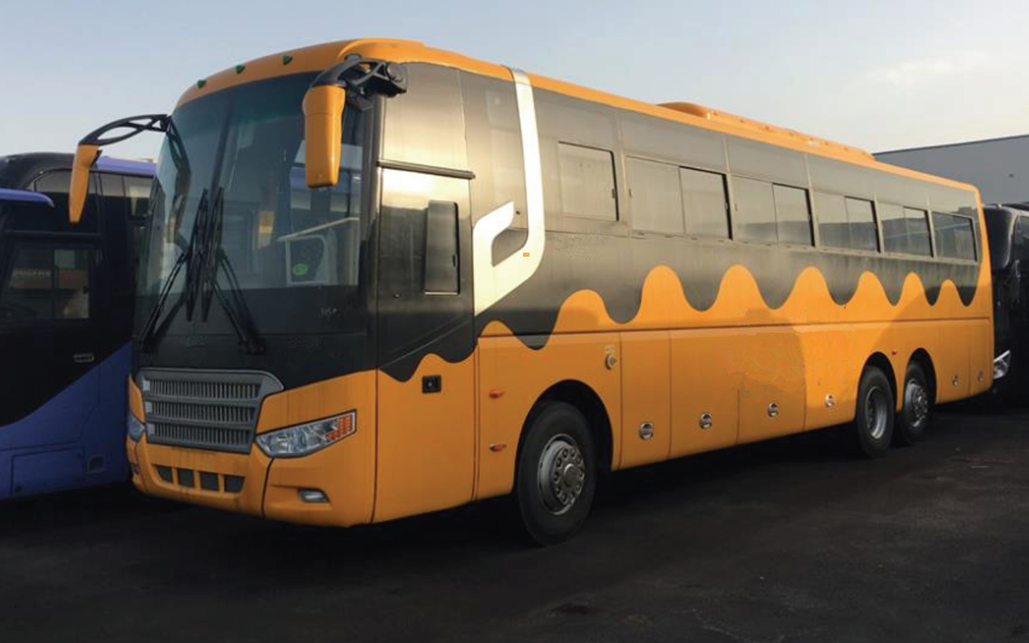

3850mm Bus Height Promotion Bus Zhong Tong Bus Euro III Emission Stand

leave a message

Related products

New Bus Zhongtong 12m Length With 63Seats In Stock Right Hand Drive (RHD)Promotion Price Max.110KM/h Diesel Fuel



LCK6125C Coach Bus Specification and Quotation sheet
MAIN SPECIFICATIONOverall dimension(mm)12500ENGINEEngine modelL360 20
Overall width(mm)2550manufacturerCummins
Overall height(mm)3800/3660Engine positionFront
Body inside height(mm)1920Engine Type6 cylinders in line, Turbocharged with intercooler
Wheel base(mm)5400+1350Max power(Hp/rpm)250
Front/rear overhang(mm)2200/3550Max torque(N.m/rpm)1350
First step height(mm)380Bore/stroke mm114X144.5
Max G.V.W.kg21500FuelDiesel
Seating capacity (person)61+1+1EmissionEuro II
Max. speed km/h110 Steering PositionRHD
ChassisGear boxZF, Mechanism
ClutchCoil Spring, Ø430s
Front axle7.0 ton
Rear axle13.0 ton
Third axle5 Ton
suspensionMulti-Leaf Spring Suspension
SteeringIntegral Assistant Power Steering
BrakeDual circuit air braking, Drum brake
Fuel tank400+400
Tyre315/80R22.5, Double Coin
Battery/Dynamo2×12V/195Ah / 28V /150A+140A
OthersBrake Slack Auto Adjuster, Electiric Retarder, ABS
BUS BODYBody constructionSemi-Integral Body, Flat Floor
Interior trimInterior Trim Luxury Full Soft Interior Trim
Door & door pumpFront Aluminum Outside Swing door, Anti-clamp Door Pump, Front Door with
Remote Control Lock
WindowSliding Side Windows, Rear Toughened Safety Glass, Front Rubber-Laminated Windscreen with 2-Piece Glass
Rear mirror systemManual Rearview Mirror, Rear View 6” LCD Monitor
A/C systemN/A
HeatingFront Windscreen Defroster
Video systemDVD+2 LCD, Front 17’’ and Middle 15’’
LampNew Type Combination lamp for Front and Rear
WiperLuxury Wiper
Luggage DoorSteel Panel Overturning Opening Door

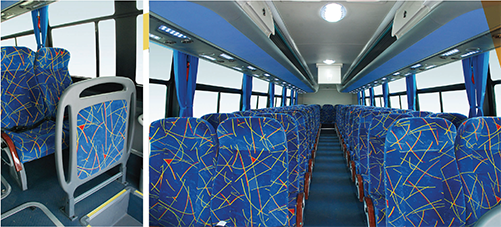

SeatsAdjustable Type Fabic Seats, 2+2 Layout 61+1 seats, with Net
PaintHigh Quality Paint
OthersDouble Inner Luggage Rack, Air Horn, Windscreen Sun Visor, Side Window
Curtain, Skid Proof Floor Leather, Stainless Steel Decoration Cover,
Compressor Type Refrigerator
