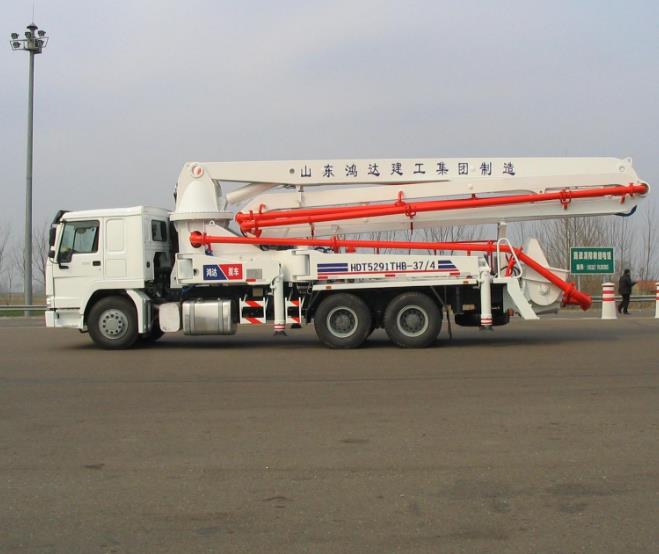

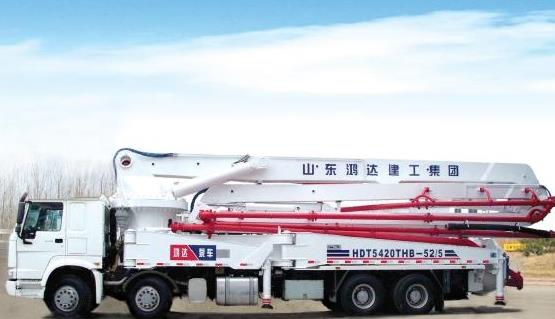

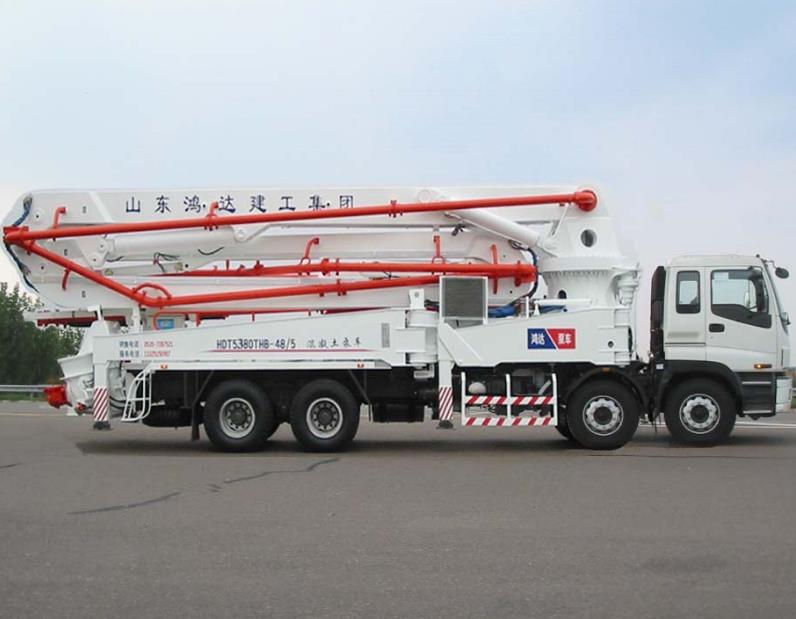

Second hand Isuzu-HongdaConcrete Pump Truck 42m
- Condition:
- Used
- Year:
- 2012-2015
- Emission standard:
- EuroⅢ
- Chassis model:
- HOWO ZZ5437S4667C
- Motor model:
- D615.96
Related products
Drive mode 8*4 and EuroⅢ Emission standard Second hand Hongda Concrete Pump Truck 42m LENGTH in 2012 could be used in kinds of construction.
| SPECIFICATION | |||
| Model HDT5340THB-42 | Unit | 42m | |
| Total vehicle parameter | Length | mm | 13550 |
| width | mm | 2500 | |
| height | mm | 3900 | |
| Total quality | kg | 41870 | |
| Boom leg parameter | Vertical height | m | 41.8 |
| Horizontal length | m | 38 | |
| Vertical depth | m | 29 | |
| Min. unfolding height | m | 8.6 | |
Length of the first jib Rotary angle | mm ° | 10250 91 | |
Length of the second jib Rotary angle | mm ° | 9180 180 | |
Length of the third jib Rotary angle | mm ° | 9240 180 | |
Length of the forth jib Rotary angle | mm ° | 9330 240 | |
| Turntable rotation Angle | ° | ±365 | |
| Width of the forth leg | Mm | 8820 | |
| Width of the back leg | mm | 8500 | |
| Distance of the back and forth leg | mm | 8490 | |
| Pumping system parameter | Output in theory | m3/h | 120 |
| Theoretical pumping pressure | Mpa | 8 | |
| Pump times in theory | times/min | 24 | |
| conveying cylinder | mm | 230 | |
conveying cylinder journey | mm | 2000 | |
| Hydraulic system | close | ||
| Oil pressure System | Mpa | 32 | |
| Oil tank volume | L | 600 | |
| Water tank volume | L | 700 | |
| Pipe diameter | mm | 125 | |
| Length of the end hose | mm | 4000 | |
| Diameter of the end hose | mm | 125 | |
| Chassis Parameter | Chassis model | HOWO ZZ5437S4667C | |
| Motor model | D615.96 | ||
| Motor | Kw/rpm | 276/2200 | |
| Emission standard | EuroⅢ | ||
| Fuel tank volume | L | 400 | |
| Output volume | L | 9.726,10.52 | |
| Max. speed | Km/h | 90 | |
| Braking length | m/km/h | ≤10/30 | |
Trade Terms:
Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.
