Tri Axles Aluminium Trailer Tanker oil fuel diesel Transport Tank Capacity 30, 000L-45, 000liters 12 wheels
Effective volume of tank body: 41.7 cubic meters, medium name: gasoline, diesel oil, kerosene, density: 0.7,0.83,0.8 tons/cubic meter in sequence, category number: 3, external dimensions of tank body (length x width x height) (mm): front 3550X2490X1950, rear 7700X2490X2100, tractor suitable for towing semi-trailer for transporting dangerous goods is adopted. Protective material: aluminum alloy, connection mode: left and right sides and rear lower protection are welded, rear protection section size (mm):140×60, rear protection height (mm):540,ABS manufacturer: Guangzhou kemi automobile brake technology development co., ltd., ABS model: CM2XL-4S/2K(4S/2M)
| Dimension(mm) | L*w*h: 12972x2500x3750(mm) |
| King pin setting(mm) | 1715mm |
| Kin pin plate height (mm) | 1366mm |
| Axle space(mm) | 7060mm+1310mm+1310mm |
| Tare weight | 7500kgs |
| Loading capacity | 42800L |
Configuration:
| Landing gear | Two speed manual operation type with sand shoe |
| Kingpin | Jost 2" bolted type |
| Brake system | Wabco brake valve |
| Suspension | Air bag Suspension |
| Axle | Fuwa axle,13 ton capacity/set,3sets |
| Tire | 425/65R22.5-20pr , 6 pcs Double Coin Brand |
| Rim | 13.0-22.5 6pcs, Aluminium Alloy |
| Tool box | 1 |
| Spare tire carrier | 2 |
TANK SPECIFICATION:
| Compartment | Three,15000l/15000l/15000l |
| Tank material | Aluminium Alloy, thickness 6mm,5mm |
| Bulkhead and Baffle | Thickness 7mm |
| Tank Shell | Thickness 6mm & 5mm |
| Shape of tank | Ellipse (double "d") |
| Test pressure designed | 36kpa |
| Manhole | 20"Aluminium Alloy Manhole Cover, C801-560 |
| bottom valves | 3, Aluminium Alloy |

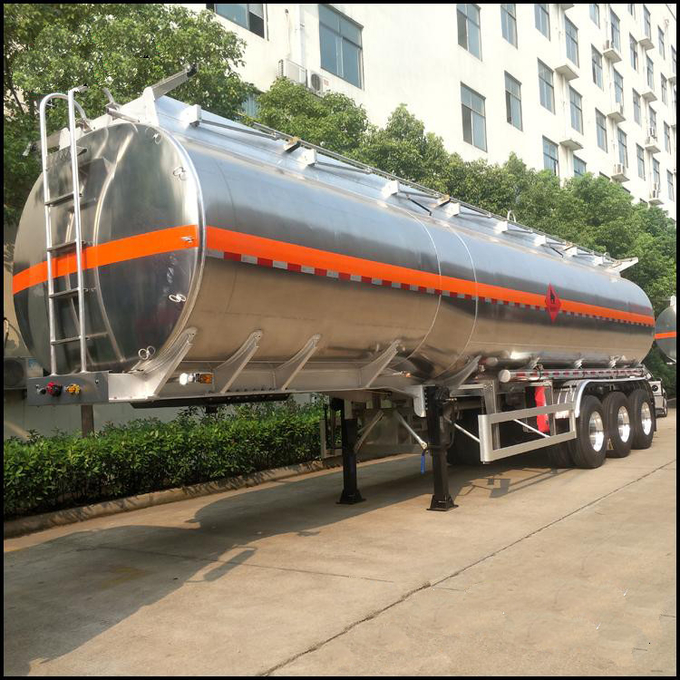

More photos for your review:
