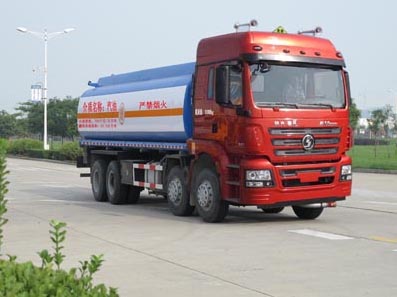

27.5m3 Second hand oil tanker truck

Condition:
Used
Year:
2013-2015
Engine:
WP10.290E40
volume of the tank(L):
27500
Emission standard:
EURO IV
leave a message

Related products



27.5m3 volume of the tank(L) 8×4 Drive mode and EURO IV Emission standard Second hand oil tanker truck IN 2014Year could be used in kinds of circumstances.



SPECIFICATION
SHACMAN OIL TANKER TRUCK SX5316GYYGM456
volume of the tank(L)27500
Drive mode8×4
EngineModelWP10.290E40
Type6-cylinder in line, turbocharging, inter cooling, mechanical injection pump, built-in EGR
Max. power(Kw/rpm)213/1900
Max. torque(N.m/rpm)1340/1200
Cylinder bore ×Stroke(mm)102×120
Emission standardEURO IV
Displacement(ml)9700
Type of fuelDiesel
Compression ratio(17.5±0.5):1
CabD530one and a half rows
Capacity3 persons
GearboxTypeFAST 9JS135
Max. torque(N.m)1500
ClutchΦ395mmpush-type diaphragm spring clutch
Frame H×W× T(mm)250×80×(7+4)
AxlesFront axle(Kg)6500
Rear axle(Kg)18000
No. of spring leaves7/9+6
TyreSize11.00R20 18PR,11R22.5 16PR,12.00R20 16PR,12R22.5 18PR
Air conditionerA/C
DimensionsOverall dimension(mm)11935*2490*3360
Wheel base(mm)1800+4500+1350
Front/Rear suspension(mm)1485/2675
Front/Rear tread(mm)2011/1860
App./Dep. angel (°)20°/11°
PerformanceMax. speed(Km/h)78
Max. gradeability(%)30
Min. turning diameter(m)17
MassPayload(Kg)18,870
Curb weight(Kg)12,000
G.V.W(Kg)31,000



Trade Terms:

Delivery time: Wihtin 5-8 working days after receipt of down payment.

Packing : Nude packing.

Shipment: By RO-RO or Bulk vessel .

Price validity: Within 30 days.

Payment terms: T/T before shipment.


Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.


Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.
