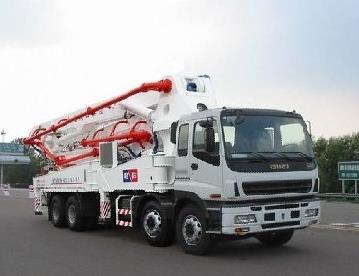

ISUZU-HONGDA Used Concrete Pump Truck 52m
- Condition:
- Second hand
- Year:
- 2012-2015
- Emission standard:
- EuroⅢ
- Chassis model:
- ZZ5437S5067C1
- Motor model:
- WD615.96
Related products
HONGDA Used Concrete Pump Truck 52m LENGTH pump with 8*4 drive mode and EuroⅢ Emission standard in 2012 could be used in kinds of construction.
| SPECIFICATION | |||

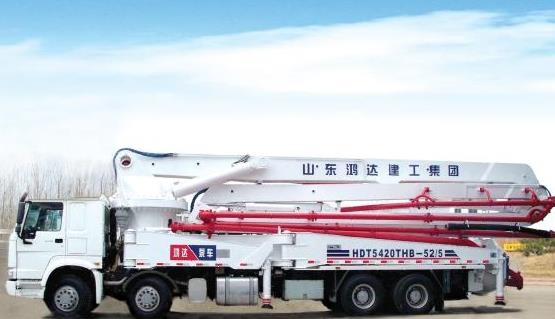

| Model HDT5420THB-52 | Unit | 52m | |
| Total vehicle parameter | Length | mm | 14000 |
| width | mm | 2500 | |
| height | mm | 4000 | |
| Total quality | kg | 41870 | |
| Boom leg parameter | Vertical height | m | 51.8 |
| Horizontal length | m | 47.8 | |
| Vertical depth | m | 39.8 | |
| Min. unfolding height | m | 9.4 | |
Length of the first jib Rotary angle | mm ° | 11000 91 | |
Length of the second jib Rotary angle | mm ° | 9200 180 | |
Length of the third jib Rotary angle | mm ° | 9200 180 | |
Length of the forth jib Rotary angle | mm ° | 9200 180 | |
Length of the fifth jib Rotary angle | mm ° | 9334 270 | |
| Turntable rotation Angle | ° | ±365 | |
| Width of the forth leg | mm | 10295 | |
| Width of the back leg | mm | 10650 | |
| Distance of the back and forth leg | mm | 10310 | |
| Pumping system parameter | Output in theory | m3/h | 120 |
| Theoretical pumping pressure | Mpa | 8 | |
| Pump times in theory | times/min. | 24 | |
| conveying cylinder | mm | 230 | |
| conveying cylinder journey | mm | 2000 | |
| Hydraulic system | close | ||
| Oil pressure System | Mpa | 32 | |
| Oil tank volume | L | 940 | |
| Water tank volume | L | 706 | |
| Pipe diameter | mm | 125 | |
| Length of the end hose | mm | 3000 | |
| Diameter of the end hose | mm | 125 | |
| Chassis Parameter | Chassis model | ZZ5437S5067C1 | |
| Motor model | WD615.96 | ||
| Motor | Kw/rpm | 276/2200 | |
| Emission standard | EuroⅢ | ||
| Fuel tank volume | L | 400 | |
| Output volume | L | 9.726 | |
| Max. speed | Km/h | 90 | |
| Braking length | m/km/h | ≤10/30 | |
Trade Terms:
Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
