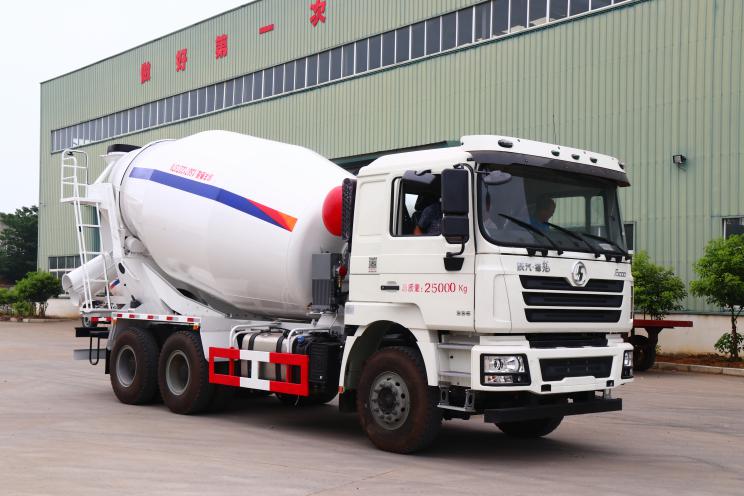

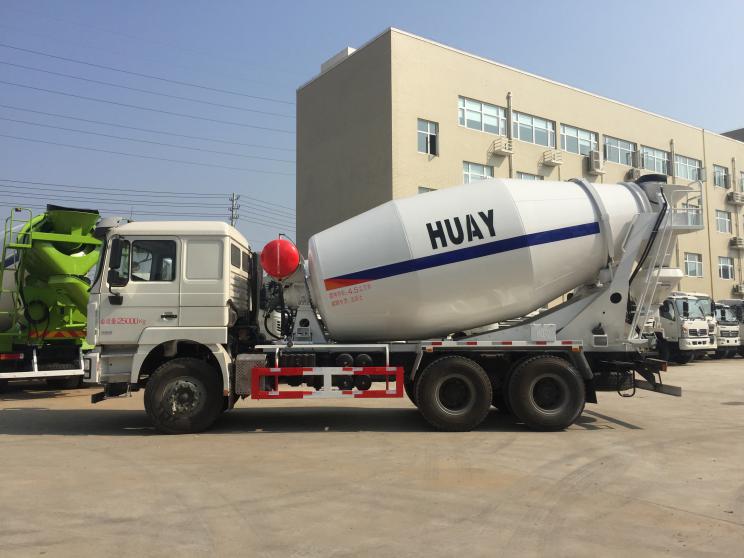

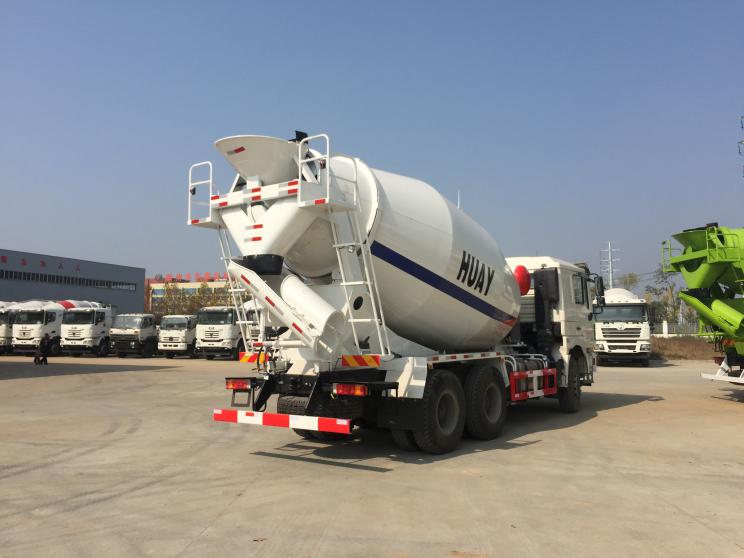

Second hand 12m3 SHACMAN Concrete Mixer Truck
- Condition:
- Used
- Year:
- 2013-2016
- Overall dimensions:
- 10450X2495X3950mm
- Loading capacity:
- 12m3
- Emission:
- Euro 5
Related products
6*4 Drive mode, Euro 5 Emission and 336hp Rated power Second hand 12m3 SHACMAN Concrete Mixer Truck in 2016 could be used in kinds of construction.
| Vehicle parameters | |||
| Product name | Concrete Mixer truck | Vehicle Brand | SHACMAN |
| Overall dimensions | 10450X2495X3950mm | Curb weight | 16000kg |
| Loading capacity | 12m3 | Year | 2012-2017 |
| Chassis parameters | |||||
| Chassis model | SX1250FB | Chassis brand | SHACMAN | ||
| Overall dimensions | 8600x2495x3270mm | Wheel base | 3975+1400mm | ||
| Front/rear wheel track | 2011/1860/1860mm | Front/rear suspension | 1525/1700mm | ||
| Approach/departure angle | 18/11° | Maximum speed | 99km/h | ||
| Chassis Manufacturer | Shanxi Automobile Group Co., Ltd. | ||||
| Cab | Configuration | F3000 half cab(with sleeping berth),allowable 3 passengers | |||
| Color | White,other color is optional | ||||
| Engine | Model | WP10.336E53 | |||
| Emission | Euro 5 | ||||
| Type | 6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,direct injection, exhaust valve brake,diesel engine | ||||
| Rated power | 336hp,rated power speed 1900rpm | ||||
| Displacement | 9726ml | ||||
| Bore x stroke | 126x130mm | ||||
| Manufacturer | Weichai Power Co.,Ltd | ||||
| Tire | Size | 12.00R20 steel wire tire | |||
| Number | 10+1 nos | ||||
| Clutch | φ430 diaphragm clutch | ||||
| Fuel tank | 400L Aluminum fuel tank | ||||
| Front axle | 7.5 tons | ||||
| Rear axle | 16.0 tons STR rear axle | ||||
| Drive form | 6x4 | ||||
| Rated voltage | 24V,DC | ||||
| Transmissions | Gearbox RTD11509C, 9 speed forward 1 reverse | ||||
| Steering device | Power assisted steering | ||||
| Steering wheel | Left hand drive | ||||
| Selective configuration | |||||
| If there is a slight change in the chassis parameters above,please take the actual product as the standard | |||||
| Concrete mixer truck structure parameters | ||||
| Mixing capacity(m³) | 12 | Color and Logo | Optional | |
| Feeding speed (m³/min) | ≥8 | Discharge speed(m³/min) | ≥5 | |
| Discharge residual rate | ≤0.5% | Slump scope(mm) | 50-210 | |
| Water tank capacity(L) | 300 | Water pressure(Mpa) | 0.35-0.38 | |
| Tank material | 5mm alloy steel | Tank front head | 8mm alloy steel | |
| Reducer | BONFIGLIOLI | Hydraulic motor | Germany REXROTH | |
| Hydraulic pump | Germany REXROTH | Radiator | KAIPENG | |
| Standard configuration | chassis,sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device. | |||
| 12m3 | Italy Bonfiglioli reducer,Germany REXROTH hydraulic pump,Germany REXROTH hydraulic motor,KAIPENG radiator,mixer tank(main tank 6mm alloy steel wear resistant material,front tank head 8mm alloy steel wear resistant material) | |||
| Selective configuration | Emergency high pressure oil hose(4 pieces),12m emergency oil hose(Italy),water cannon,large tool box,electric water supplying system. Germany ZF/Italy PMP reducer, Italy PMP/Italy MESSORI/America EATON/America SAUER hydraulic pump, hydraulic motor. | |||
