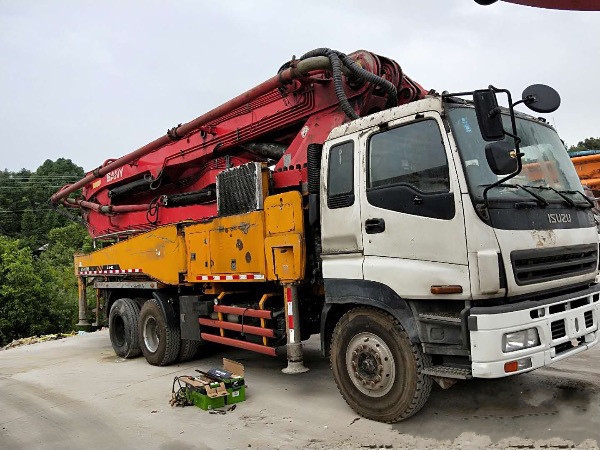

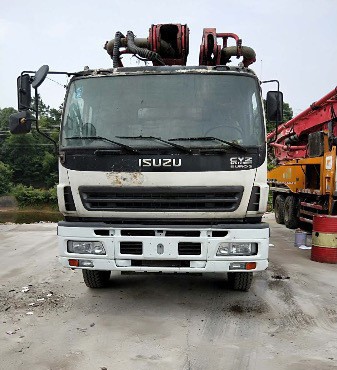

Second hand ISUZU-SANY Concrete pump truck with 48m
- Engine emission standard:
- Euro III
- Year:
- 2010-2013
- Outline dimensions (Length′ Width ′Height)mm:
- 12600×2500×3990
- Drive mode:
- 8×4
- Engine:
- 6WF1D
SPECIFICATION | |||
Item | Parameter | ||
Outline dimensions (Length′ Width ′Height)mm | 12600×2500×3990 | ||
Fuel type | Diesel | ||
Engine emission standard | Euro III | ||
Displacement/Powerml/kw | 14256/287 | ||
Steering type | Steering wheel | ||
No. of axle | 4 | ||
Wheel base(mm) | 1850+4605+1310 | ||
No. of spring leaf (front/rear) | 2+3/9 | ||
Tire | 12.00R20 | ||
Track (front/rear) mm | 2029/1872 | ||
No. of tire (exclude spare tire) | 12 | ||
Total vehiclecurb weight | Total weight(kg) | 37625.00 | |
Front axle load(kg) | 15870.00 | ||
Mid, rear axle load(kg) | 21755.00 | ||
Total weight | Total weight(kg) | 37820.00 | |
Front axle load(kg) | 16000.00 | ||
Mid, rear axle load(kg) | 21820.00 | ||
Crew in cab | 3 | ||
Approach angle/Departure angle | 25°/12° | ||
Front overhang /Rear overhang(mm) | 1360/3500 | ||
Max. speedkm/h | 94 | ||
Min. ground clearance(mm) | 270 | ||
Max. grade-ability | 38% | ||
Fuel consumption of 100km(L/100km) | 40 | ||
Chassis | Model | CYH51Y | |
Drive mode | 8×4 | ||
Manufacturer | ISUZU | ||
Engine | Model | 6WF1D | |
Manufacturer | ISUZU |
Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
