Parameter | Bus model | CPBCC04 |

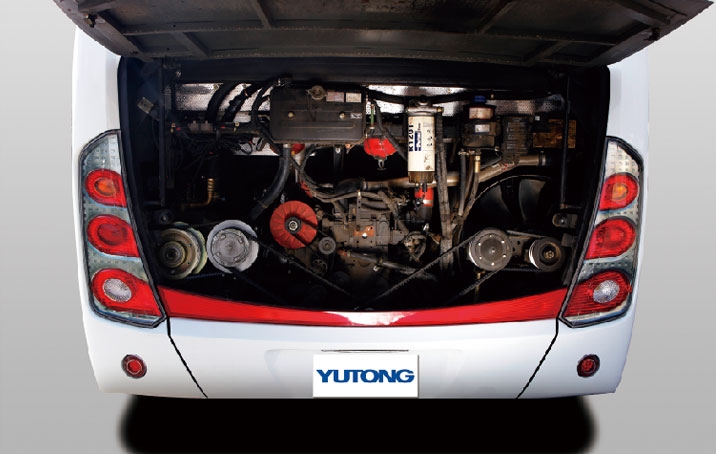

Engine model | ISB6.7E5250 |
Dimension(mm) | 9295*2480*3330 |
G.V.W.(kg) | 12935 |
Luggage compartment(M3) | 4~4.4 |
Max. speed(km/h) | 110 |
Chassis | Chassis manufacturer | Zhengzhou yutong bus Co., Ltd. |
Clutch | Outer diameter of friction lining 430, hydraulic remote control with air assistance |
Gearbox | 6-speed manual gearbox optional: 5-speed manual gearbox, AT |
Brake system | Dual circuit pneumatic brake, energy storage spring parking brake, ABS optional: retarder |
Suspension system | Air suspension, bidirectional telescopic shock absorber |
Tire | 10R22.5 |
Fuel tank (L) | 200 |
LHD/RHD | RHD |
Others | - |

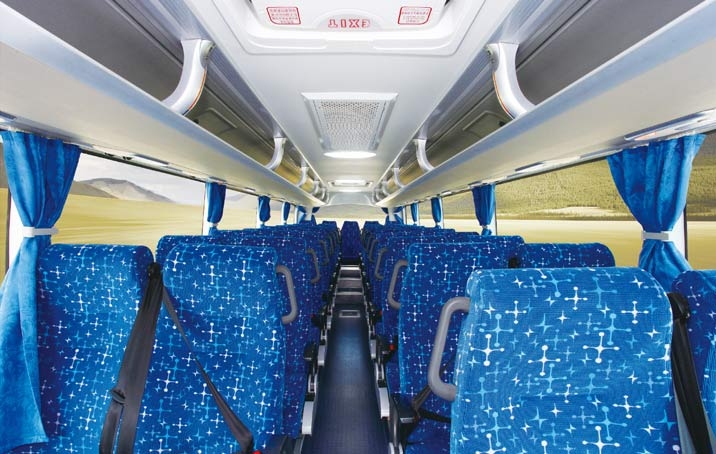

Body | Seats | 39+1+1, adjustable backrest, breadthwise adjustable |
Interiors | Integral air duct, reading lamp, air outlet, curtain |
Air conditioner (A/C) | Non-independent roof-mounted A/C (18000-22000kcal/h) |
Heating system | None |
Audio & video system | SD memory card player, 17" LCD monitor in the front |
Service parts | Electronic clock, storage case, back guide monitor |
Other facilities | Windshield wiper, remote control lock |
