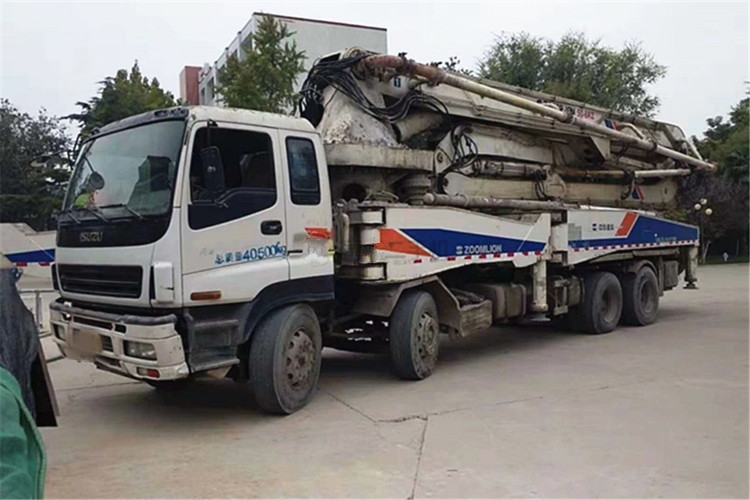

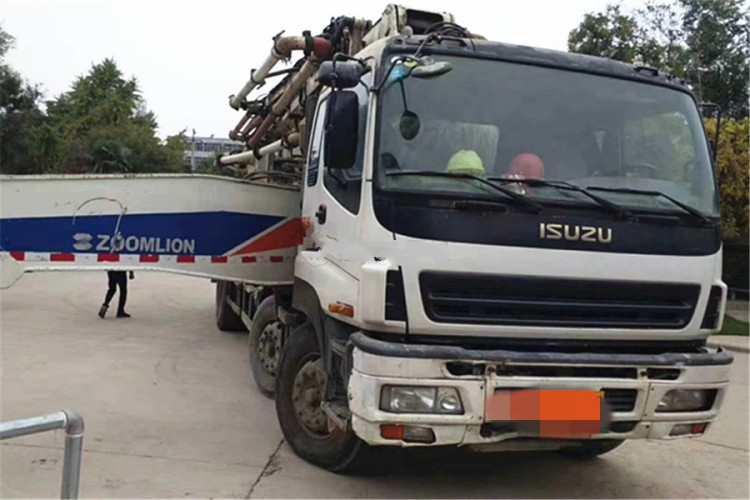

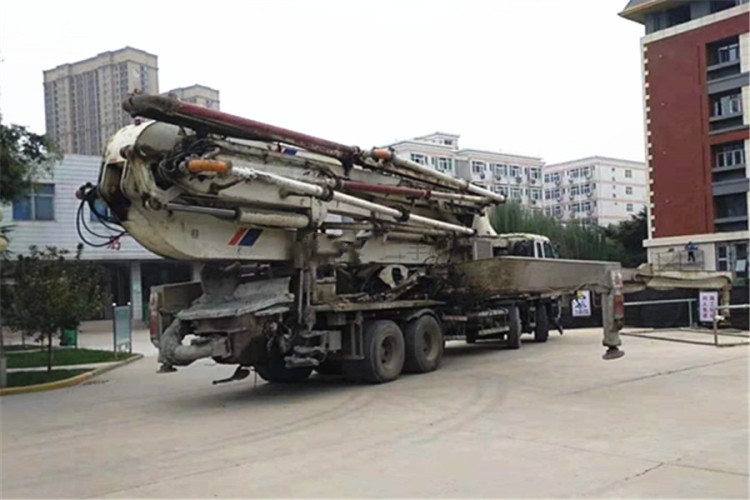

used 52M ISUZU-ZOOMLION Concrete pump truck

Condition:
used
Drive mode:
8×4
Chassis:
ISUZU CYH51Y
Engine:
ISUZU 6WF1D
Outline dimensions (Length′ Width ′Height)mm:
13700×2500×4000
leave a message

Related products

SPECIFICATION
ItemParameter
Outline dimensions (Length′ Width ′Height)mm13700×2500×4000
Fuel typeDiesel
Engine emission standardEuro III
Displacement/Powerml/kw14256/287
Steering typeSteering wheel
No. of axle4
Wheel base(mm)1850+4605+1310
No. of spring leaf (front/rear)2+3/9
Tire10.00R20
Track (front/rear) mm2065/1850
No. of tire (exclude spare tire)12
Total vehiclecurb weightTotal weight(kg)40305.00
Front axle load(kg)12000.00
Mid, rear axle load(kg)28305.00
Total weightTotal weight(kg)40500.00
Front axle load(kg)12000.00
Mid, rear axle load(kg)28500.00
Crew in cab3
Approach angle/Departure angle21°/10.8°
Front overhang /Rear overhang(mm)0.40
Max. speedkm/h85
Min. ground clearance(mm)270
Max. grade-ability38%
Fuel consumption of 100km(L/100km)40
ChassisModelCYH51Y
Drive mode8×4
ManufacturerISUZU
EngineModel6WF1D
ManufacturerISUZU



Trade Terms:

Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
