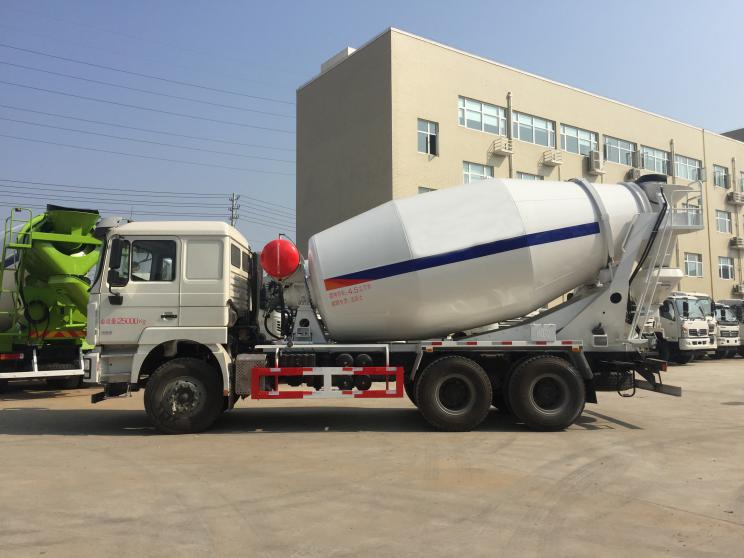

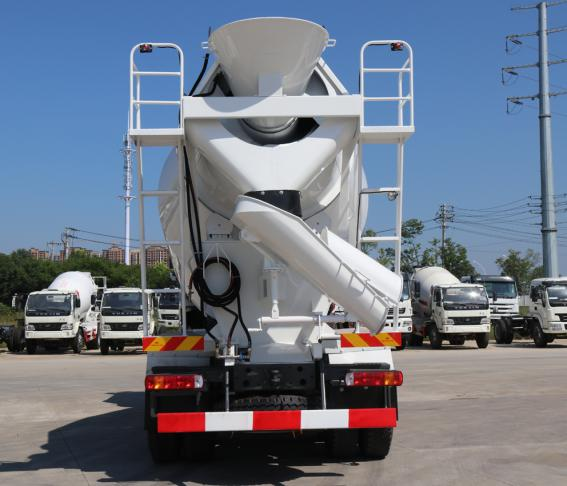

used portable HOWO 8m3 concrete mixer
- Condition:
- USED
- Year:
- 2013-2015
- Overall dimensions(mm):
- 8500x2490x3450mm
- Loading capacity:
- 8m3
- Engine:
- WP10.336E53
Almost new Intelligent Wechai Engien used portable HOWO 8m3 concrete mixer for sale in 2013 year could be used in kinds of constructions.
| |||
Vehicle Model | EHY5258GJBDR384 | Vehicle Brand | HOWO |
Overall dimensions | 8500x2490x3450mm | Curb weight | 13240kg |
Loading capacity | 8m3 |
Chassis parameters | |||||
Chassis model | SX5258GJBDR384 | Chassis brand | SHACMAN | ||
Overall dimensions | 8270x2495x3250mm | Wheel base | 3775+1400mm | ||
Front/rear wheel track | 2036/1850/1850mm | Front/rear suspension | 1525/1770mm | ||
Approach/departure angle | 20/19° | Maximum speed | 77km/h | ||
Chassis Manufacturer | Shanxi Automobile Group Co., Ltd. | ||||
Cab | Configuration | F3000 flat roof heating cab, main seat hydraulic seat, four-point hydraulic suspension cab, electronically controlled automatic constant temperature air conditioning, single-bed, 14 rear-view mirrors, manual window-shaking machine, manual overturn,F3000 cooling system, domestic left steering machine,180Ah battery, SHACMAN logo, all Russian logo, remote throttle control | |||
Color | White,other color is optional | ||||
Engine | Model | WP10.336E53 | |||
Emission | Euro 5 | ||||
Type | 4 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, exhaust valve brake, direct injection diesel engine | ||||
Rated power | 336hp,rated power speed 1900rpm | ||||
Displacement | 9726ml | ||||
Max.torque | 1550N.m | ||||
Bore x stroke | 126x130mm | ||||
Manufacturer | Weichai Power Co., Ltd. | ||||
Tire | Size | 12.00R20 steel wire tire | |||
Number | 10+1 nos | ||||
Clutch | Eaton φ430 diaphragm clutch | ||||
Fuel tank | 380L aluminium alloy | ||||
Front axle | MAN, 7.5 tons disc type | ||||
Rear axle | MAN,16 tons casting bridge,main reduction ratio 5.262 | ||||
Drive form | 6x4 | ||||
Rated voltage | 24V,DC | ||||
Transmissions | FAST 12JSD160TA,12 speed forward 2 reverse. | ||||
Steering device | Power assisted steering,steering machine | ||||
Steering wheel | Left hand drive | ||||
Selective configuration | |||||
If there is a slight change in the chassis parameters above,please take the actual product as the standard | |||||
Concrete mixer truck structure parameters | ||||
Mixing capacity(m³) | 8 | Color and Logo | Optional | |
Feeding speed (m³/min) | ≥8 | Discharge speed(m³/min) | ≥5 | |
Discharge residual rate | ≤0.5% | Slump scope(mm) | 50-210 | |
Water tank capacity(L) | 300 | Water pressure(Mpa) | 0.35-0.38 | |
Tank material | 5mm alloy steel | Tank front head | 8mm alloy steel | |

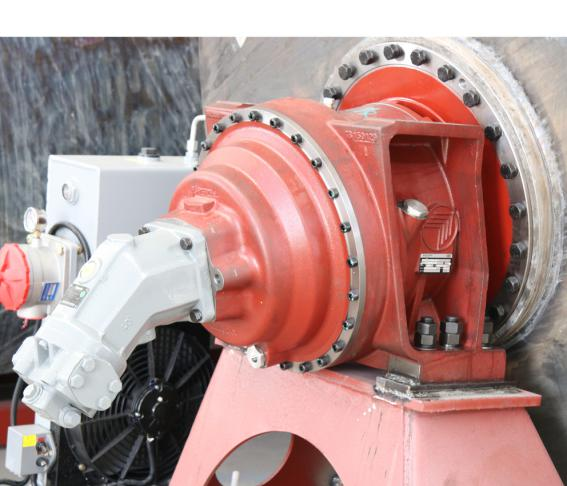

Reducer | ZF3301 | Hydraulic motor | Germany REXROTH | |

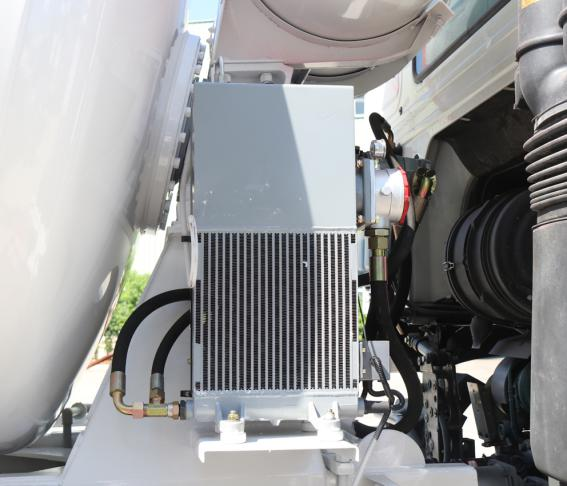

Hydraulic pump | Germany REXROTH | Radiator | KAIPENG | |

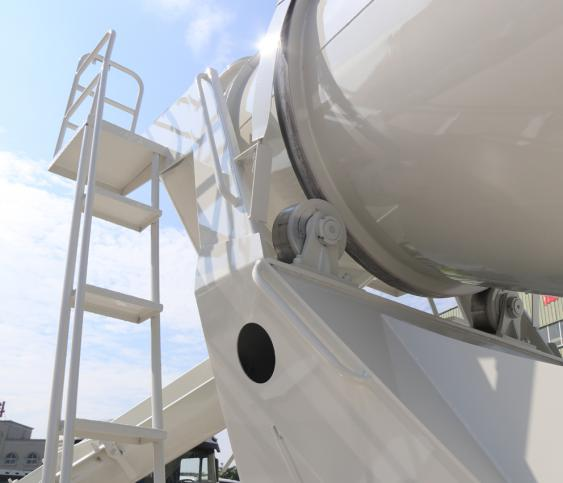

Standard configuration | chassis,sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device. | |||
8m3 | Germany ZF3301 reducer,Germany REXROTH hydraulic pump,Germany REXROTH hydraulic motor,KAIPENG radiator,mixer tank(main tank 5mm alloy steel wear resistant material,front tank head 8mm alloy steel wear resistant material) | |||
Selective configuration | Emergency high pressure oil hose(4 pieces),12m emergency oil hose(Italy),water cannon,large tool box,electric water supplying system. |
Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
