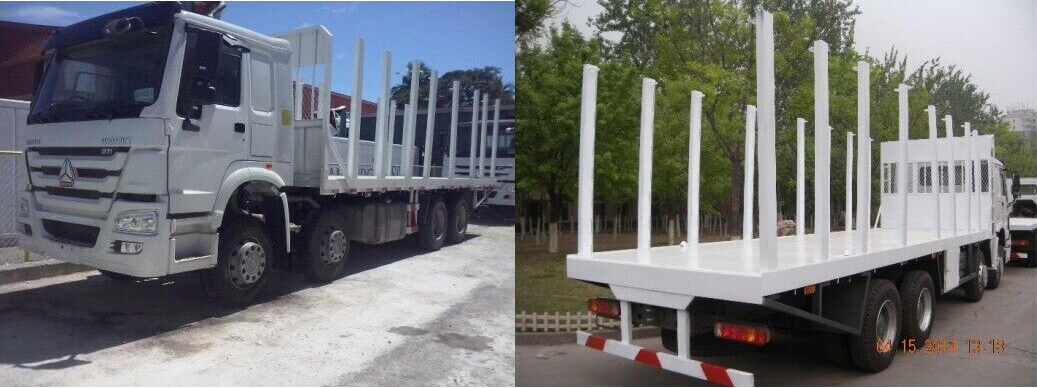

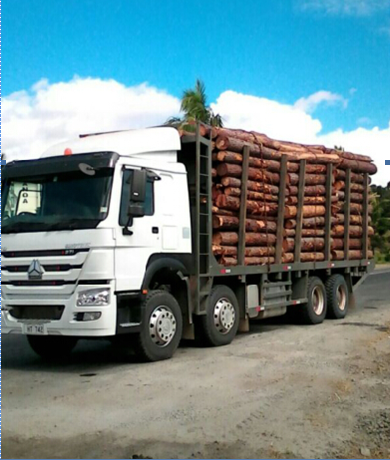

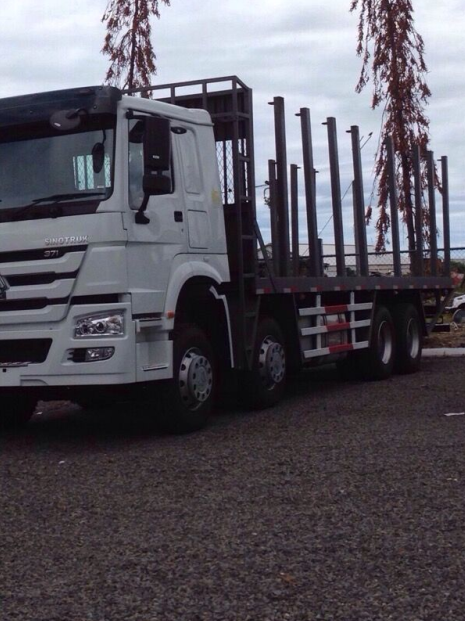

Second Hand Logging Transport Truck
- Loading Capacity:
Whatsapp/Wechat/Phone: +86 13283855772
|Item||SINOTRUK HOWO 8X4 Logging Cargo Truck|
|Driving type||Right hand drive (RHD)|
|Engine||Model||SINOTRUK brand, D10.38, 380hp, Euro IV, Diesel.|
|Type||Six cylinders inline, water cooling, 4 stroke, supercharge intercooler|
|Engine net weight (kg)||890|
|Rated Power (kw/rpm)||276/2000|
|Maximum Torque (Nm)||1560N.m|
|Maximum Torque speed||1200～1500RPM|
|Bore X Stroke||126x130mm|
|Cabin||HW76, plat-roof cab, one sleeper (berth), Air-conditioner, MP3, safety belts, curtain. Adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers.|
HW19710CL, 10 F and 2 R, manual.
Transmission with main and auxiliary transmission structure, main transmission with double counter shaft, auxiliary transmission with planetary reduction.
|Front Axles||HF7, 7T|
|Rear Axles||MCY13Q, 13TX2, drum brake. Speed ratio: 4.11.|
|Steering||ZF8118 steering gear, ZF Steering pump, power steering with hydraulic system.|
Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake
Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
|Tyre||295/80R22.5 Tubless tire, plus one spare tyre (13 units)|
|Fuel tank||400L volume|
Length of flat deck: 9500mm
Thickness of bottom plate: 3mm
Thickness of front plate: 1.5mm
8 pillars on each side of flat deck, totally 16 pillars
Height of each pillar: 2 meter
|External dimension||12000x 2550x3500 mm|
Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.
