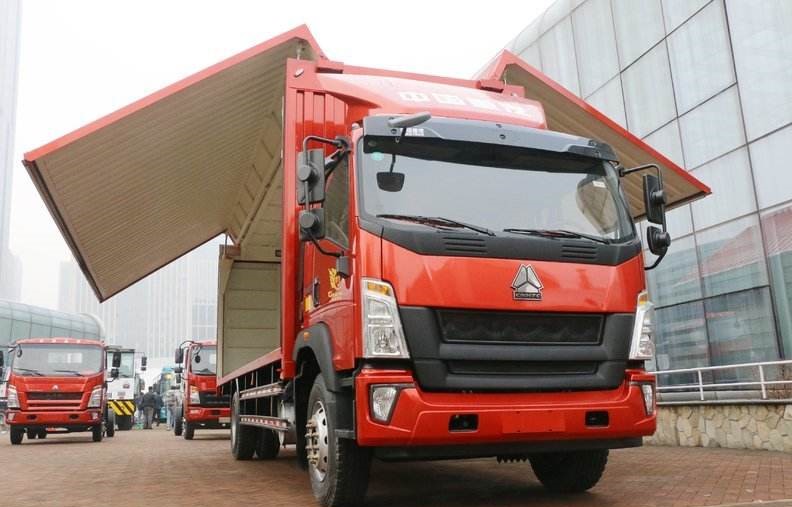

4×2 EURO V Used SINOTUK-HOWO Cargo Truck
- Condition:
- Second hand
- Year:
- 2012-2016
- Drive mode:
- 4×2
- Overall dimension(mm):
- 10430×2550×3980
- Emission standard:
- EURO V
Related products
2012 Year 4×2 Drive mode and EURO V Emission standard Used SINOTUK-HOWO Cargo Truck could be used in kinds of constructions.
| SPECIFICATION | ||
| SINOTUK-HOWO Cargo Truck ZZ5187XYKG561DE1 | ||
| Drive mode | 4×2 | |
| Engine | Model | HOWO MC05.21-50 |
| Type | 6-cylinder in line, turbocharging, inter cooling, mechanical injection pump, built-in EGR | |
| Max. power(Kw/rpm) | 151/2400 | |
| Max. torque(N.m/rpm) | 830/1400 | |
| Cylinder bore ×Stroke(mm) | 102×120 | |
| Emission standard | EURO V | |
| Displacement(ml) | 4580 | |
| Type of fuel | Diesel | |
| Compression ratio | (17.5±0.5):1 | |

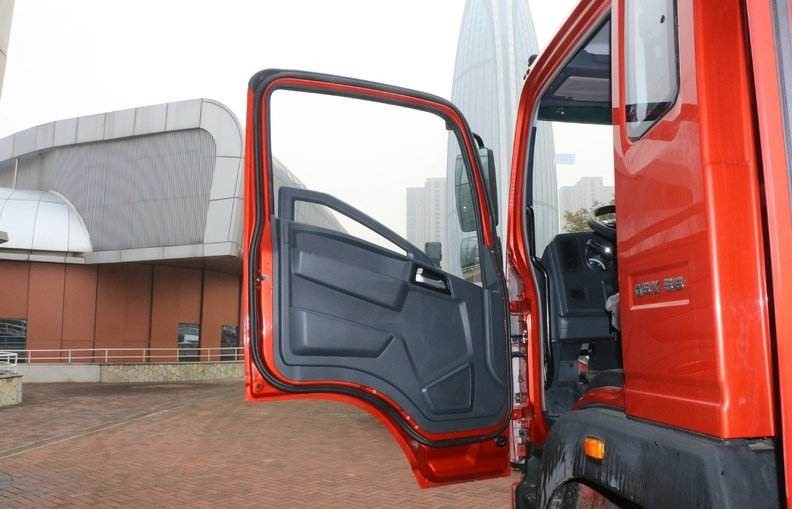

| Cab | D530 | one and a half rows |
| Capacity | 3 persons | |
| Gearbox | Type | HW90510C |
| Max. torque(N.m) | 750 | |
| Clutch | Φ395mm | push-type diaphragm spring clutch |
| Frame H×W× T(mm) | 250×80×(7+4) | |
| Axles | Front axle(Kg) | 6500 |
| Rear axle(Kg) | 11500 | |
| No. of spring leaves | 7/9+6 | |

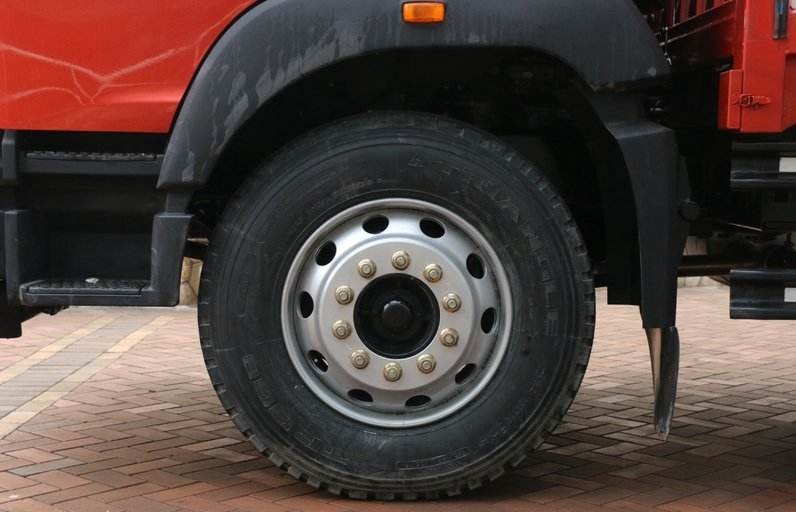

| Tyre | Size | 10.00R20,295/80R22.5 |

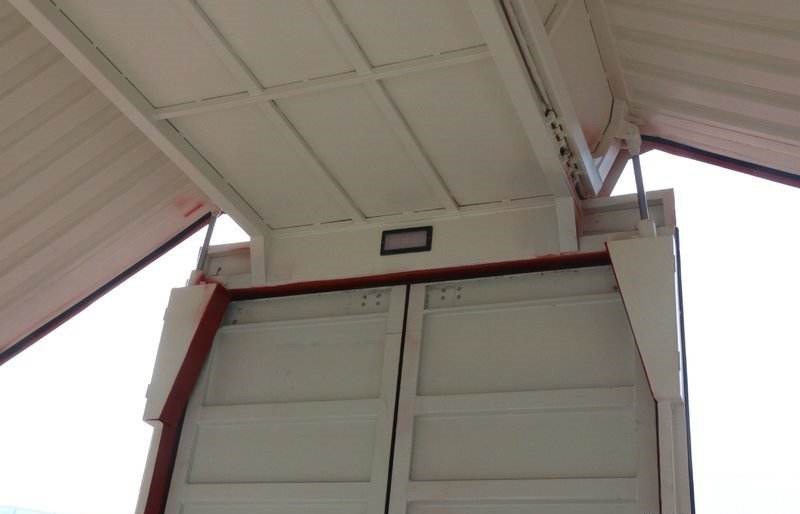

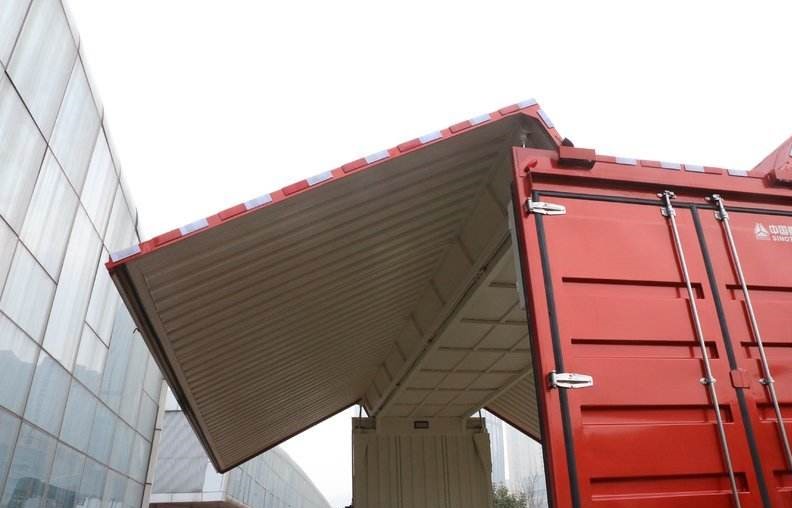

| cago box | form | Van body |
| Air conditioner | A/C | |
| Dimensions | Overall dimension(mm) | 10430×2550×3980 |
| cargo box dimension(mm) | 8150×2470×2600 | |
| Wheel base(mm) | 5600 | |
| Front/Rear suspension(mm) | 1330/3500 | |
| Front/Rear tread(mm) | 1980/1860 | |
| App./Dep. angel (°) | 19°/8° | |
| Performance | Max. speed(Km/h) | 95 |
| Max. gradeability(%) | 30 | |
| Min. turning diameter(m) | 17 | |
| Mass | Payload(Kg) | 9,990 |
| Curb weight(Kg) | 7,880 | |
| G.V.W(Kg) | 18,000 | |
Trade Terms:
Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.
